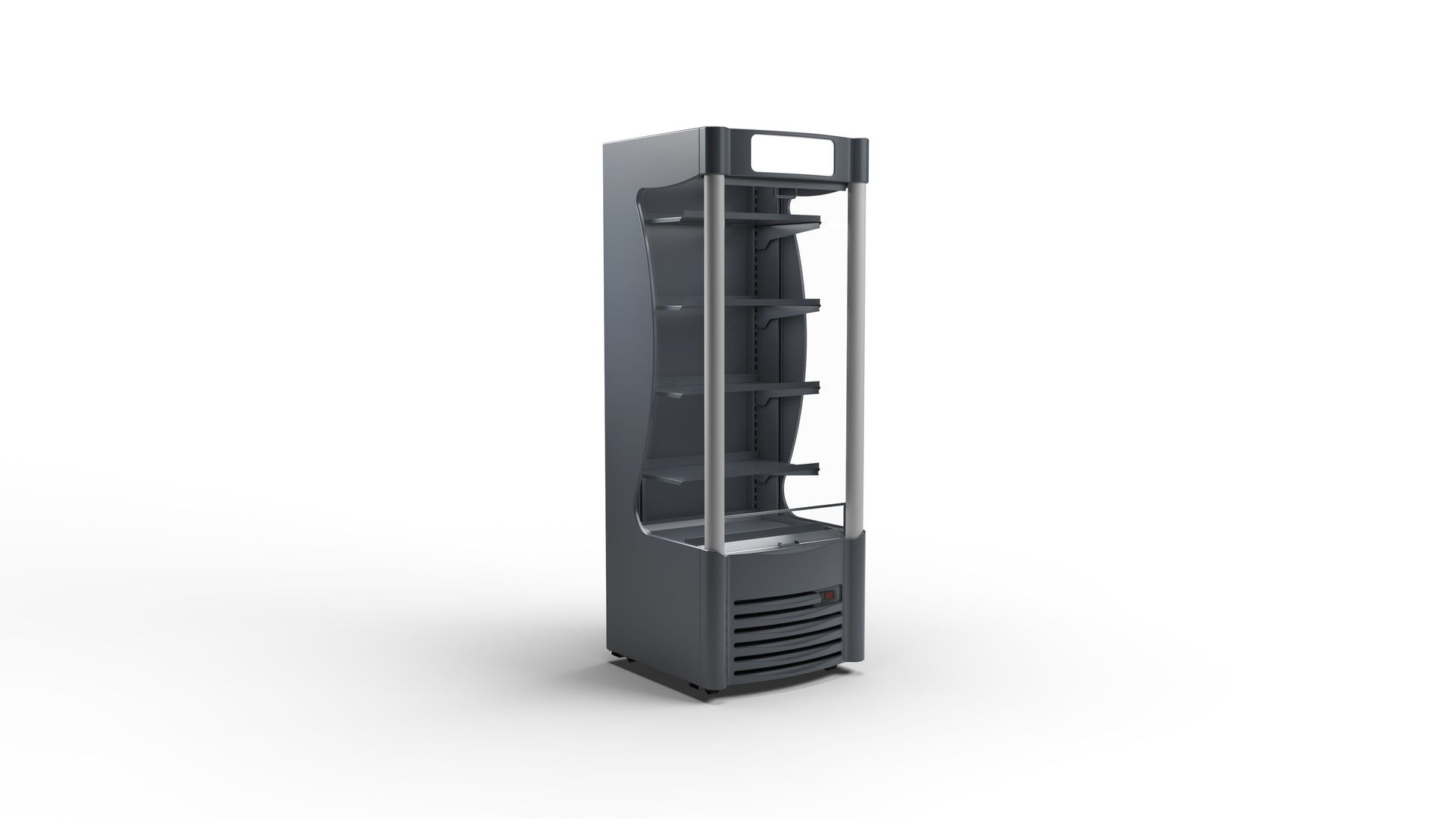

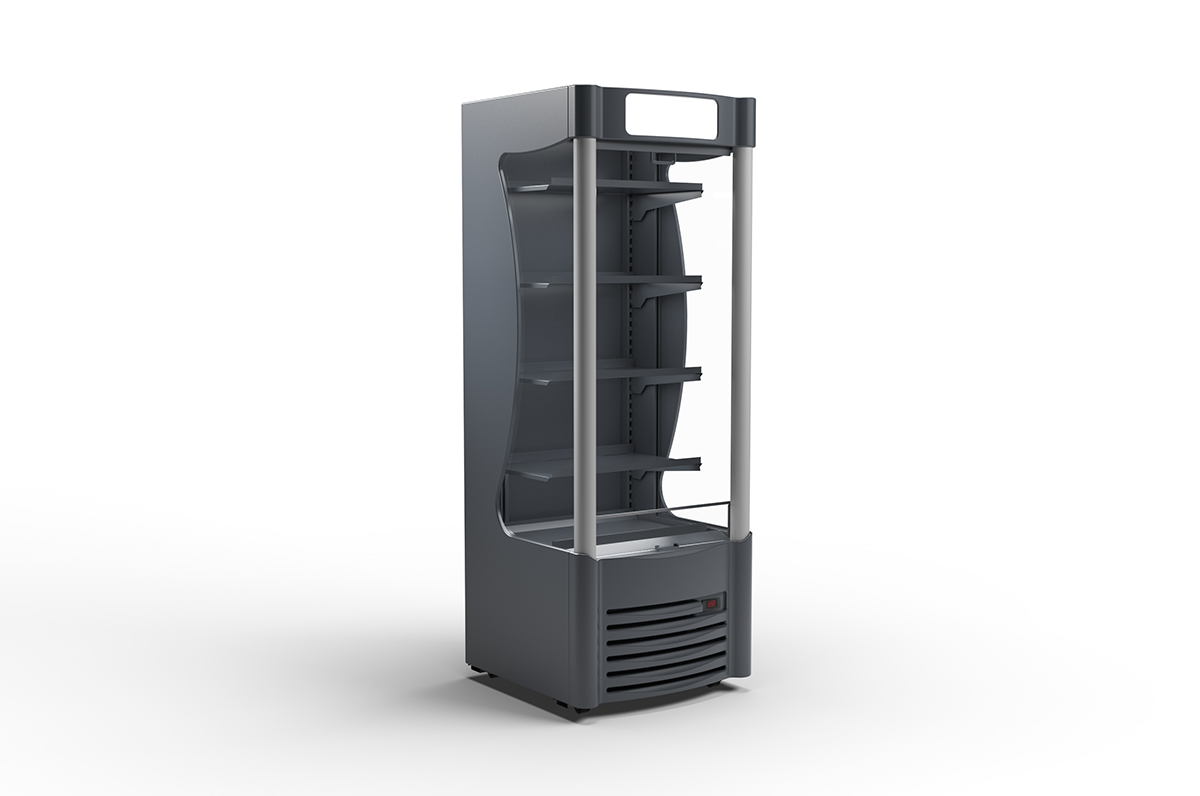

AHT AC-M Multi Deck Self-Service Merchandiser 28.2"

Cabinet Construction
• Exterior: Galvanized metal cabinet with integrated, impact resistant extruded plastic accent panels.
• Large low-E double pane tempered thermal glass side panels for increased product visibility.
• Interior: Epoxy powder coated steel for increased durability and easy cleaning.
• High-density, CFC-Free, polyurethane insulation.
• Manual, retractable night curtain increases energy efficiency and turns off lights when closed.
• Low profile fixed rollers allow for easy movement of unit and facilitate cleaning of surrounding area.

Shelving
• Five (5) heavy duty epoxy powder coated steel shelves
24”W x 15 1/8”D
• All shelves are dual position, allowing for horizontal or gravity fed positions, and are adjustable in 1” increments.
• Includes 5 Shelf Pricing Strips.

Lighting
• LED Lighting mounted in each shelf provides maximum illumination of product.
• Illuminated Header LED Lighting increases branding recognition.

Electrical
• Ready for connection to 120V/60Hz single phase 20 amp dedicated outlet.
• Includes an 8’ cord and plug set.

Refrigeration System
• Self-contained environmentally friendly refrigeration system using R290 refrigerant with an Embraco compressor.
• Self-contained, energy efficient, 3 stage hot gas heated drain pan and condensate evaporation system.
• Automatic self-defrost cycle.
• Electronic temperature control with digital readout maintains 36ºF to 41ºF (1ºC to 5ºC).
• Bottom mounted interchangeable refrigeration Cooling Deck System slides out for easy maintenance and service.
• Refrigeration System is designed with a Low Maintenance, Tube Wire Condenser and Dual Air Curtain technology to reduce energy consumption and provide additional insulation to products.

Recommended Operating Conditions
• This unit is best suited for an environment where temperatures remain below 77ºF (24ºC) and humidity does not exceed 55%.
• Open Air models should not be installed in any area where the air curtain will be frequently disrupted. This includes placement near an HVAC vent, open doorway, or fan.
• Requires 4” Clearance behind unit.

Options (Minimum Order Quantity Required)
• Custom Graphics
• Magna Bar Peg System
